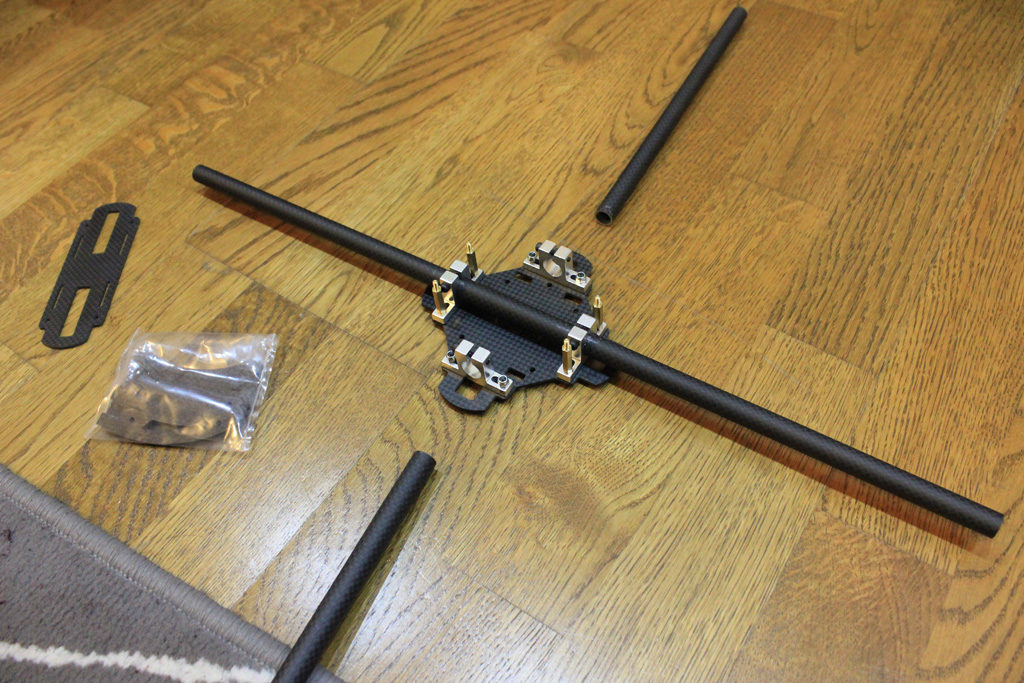

Carbon fiber frame of the quadcopter

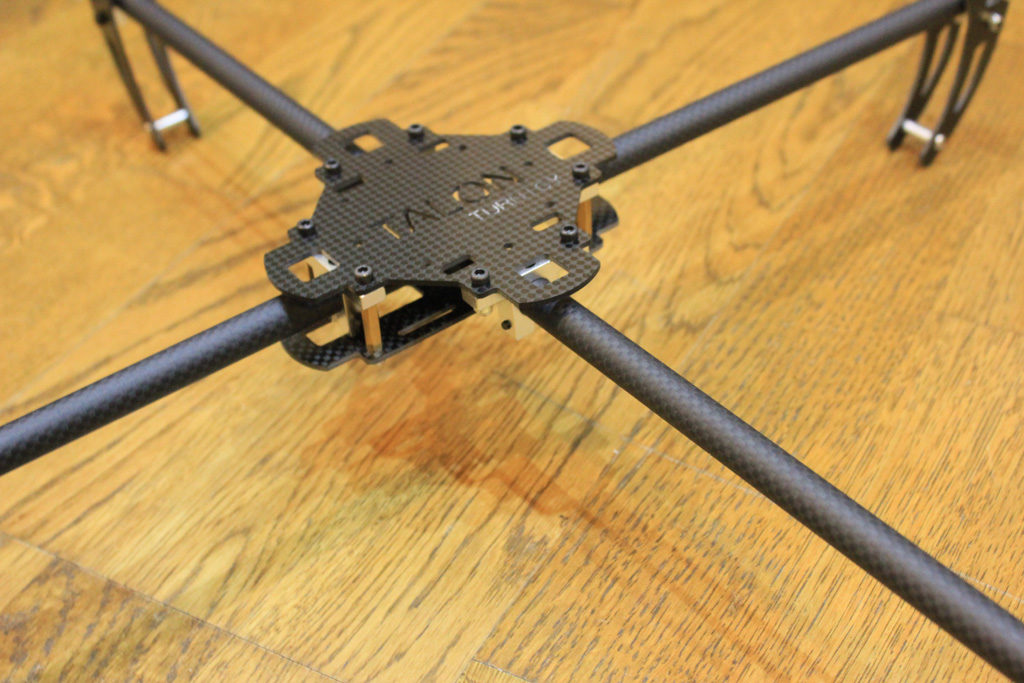

Assembled quadcopter frame

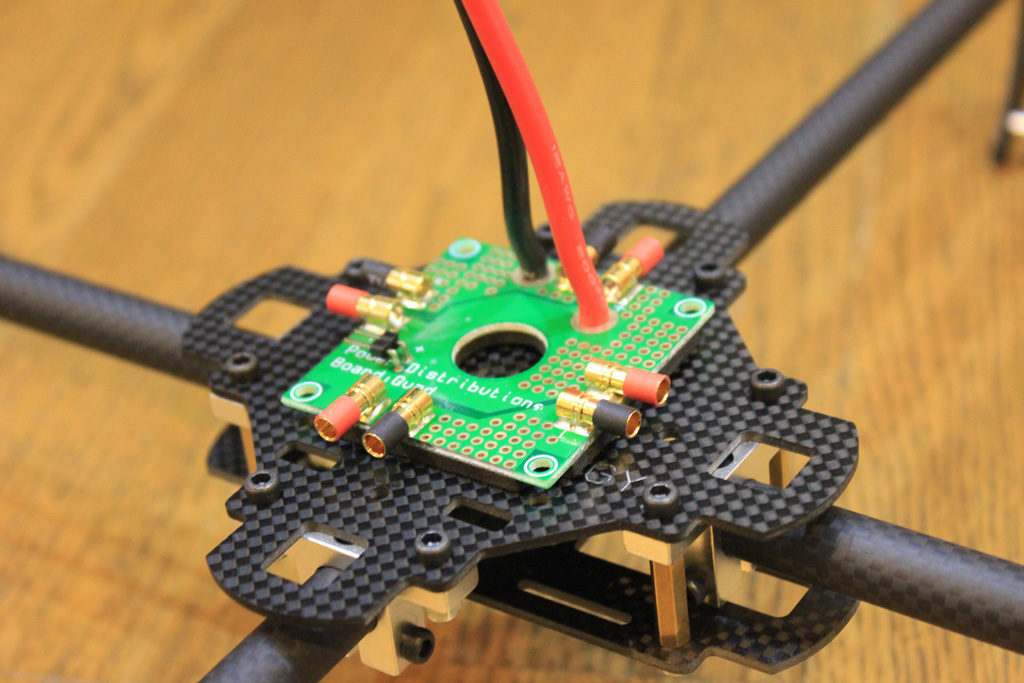

Power distribution board

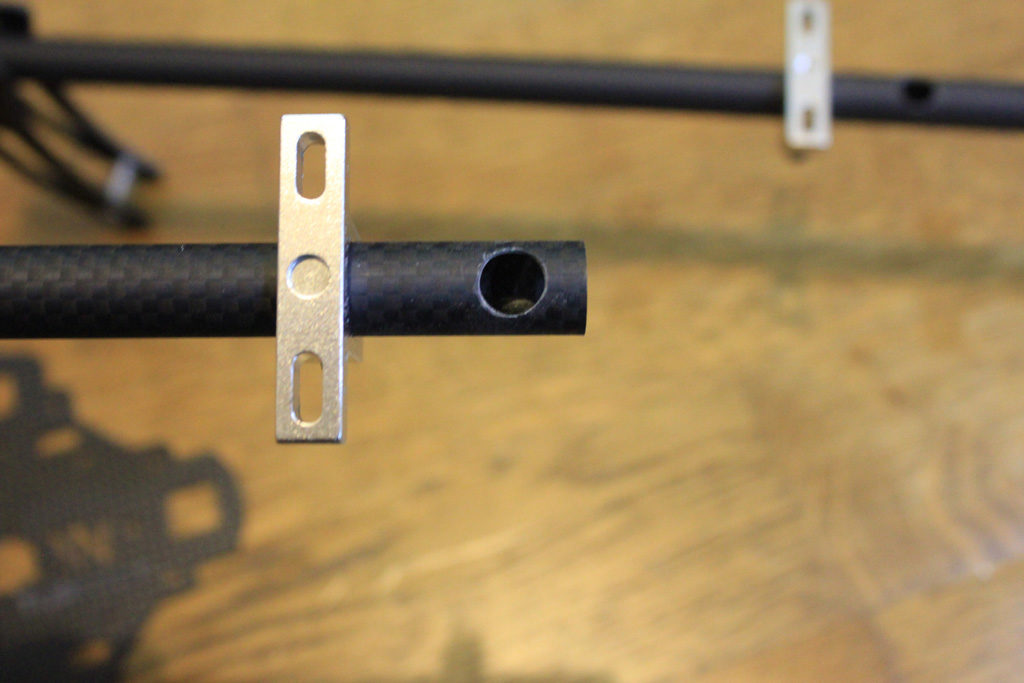

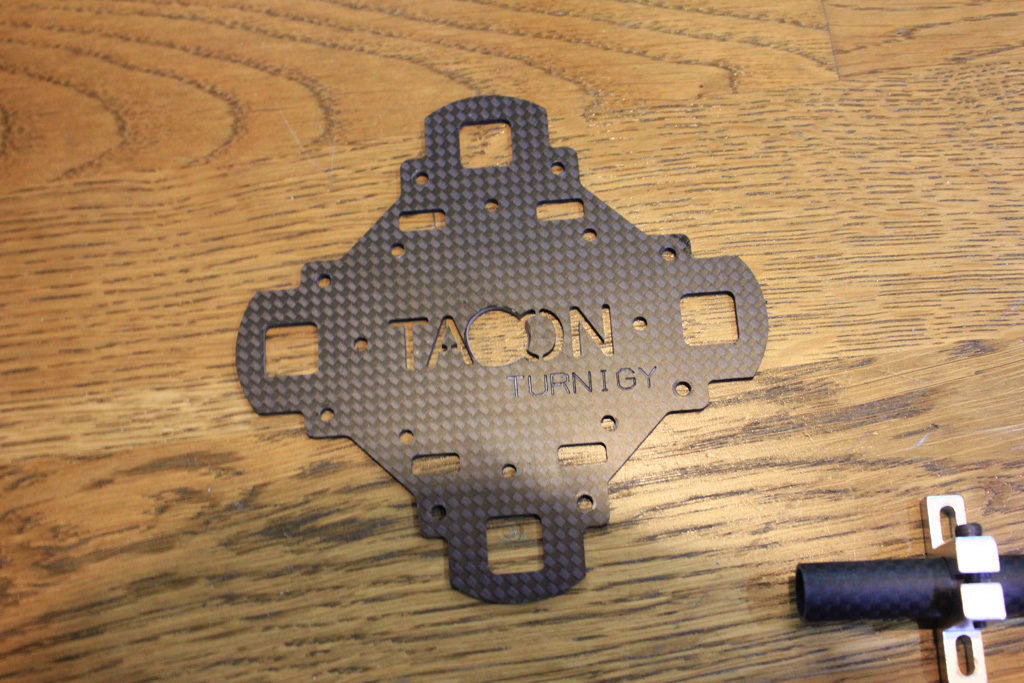

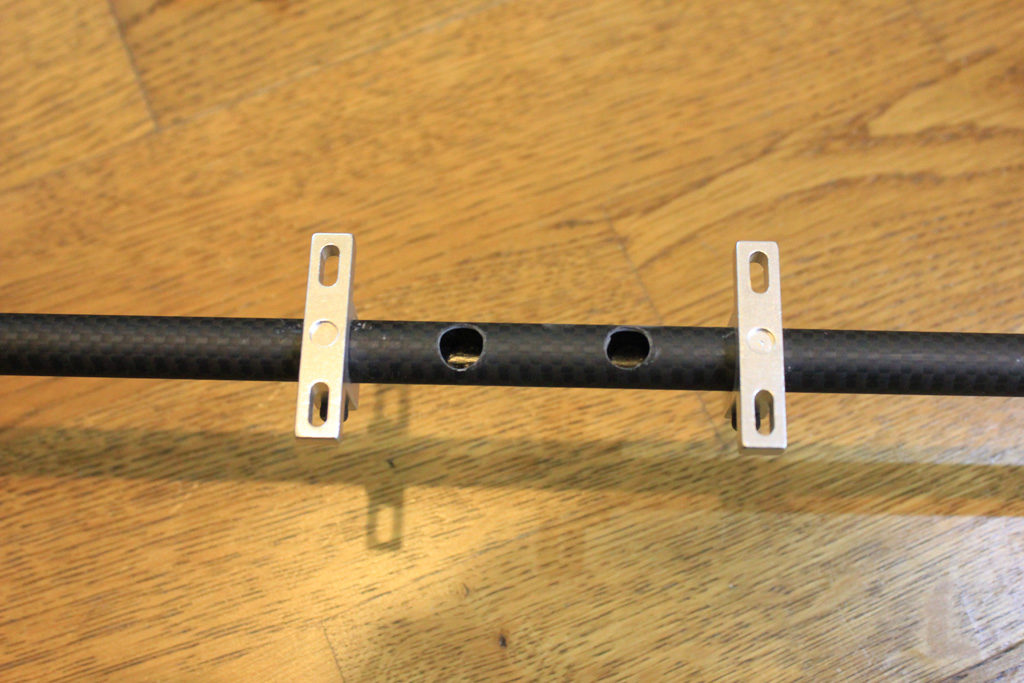

Drilling a hole for the wires

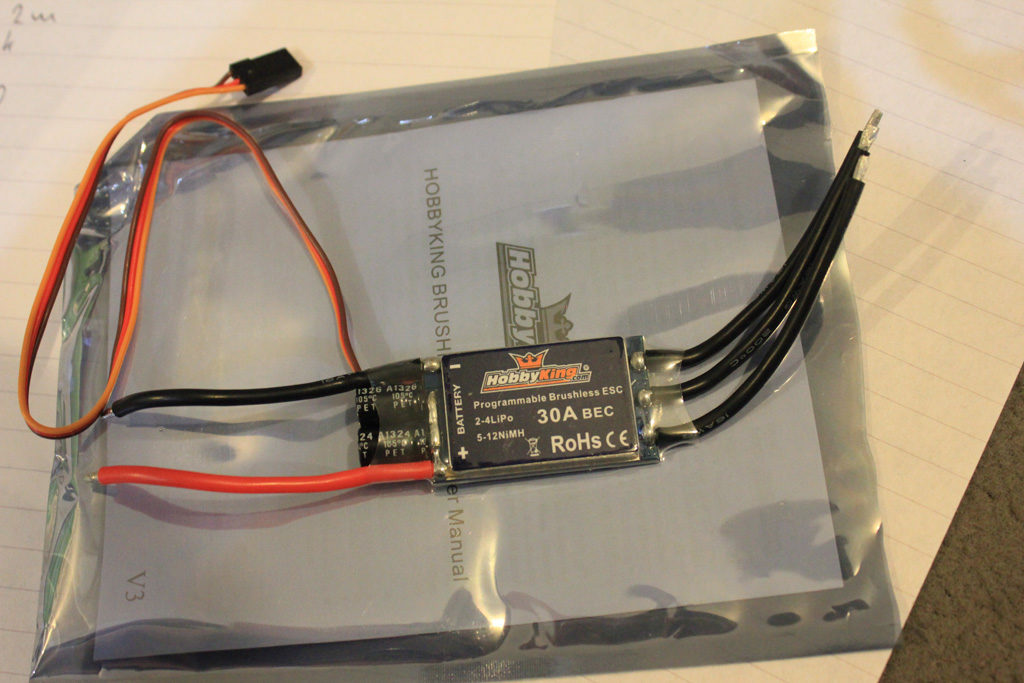

1 of the 4 motor speed controllers

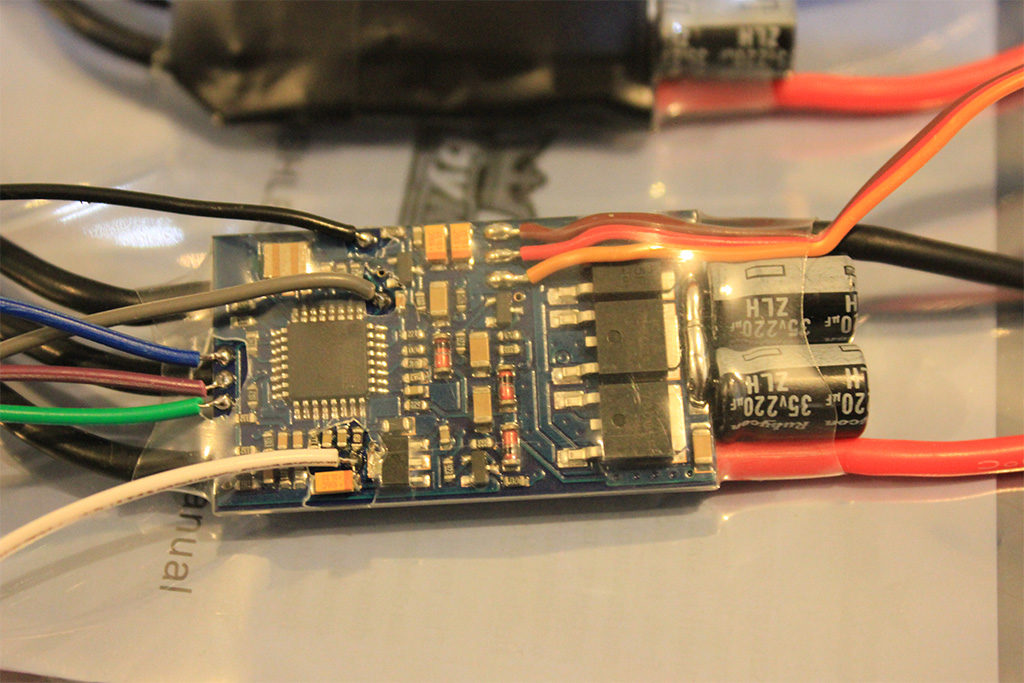

Preparing the ESC (electronic speed controller) for an upgrade

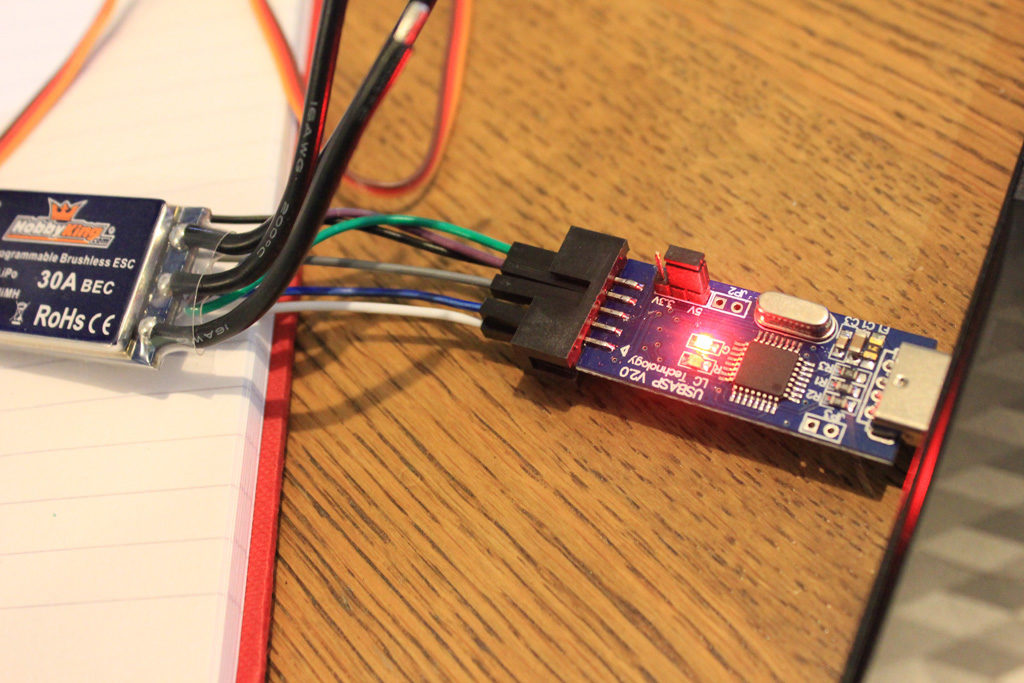

ESC connected to the laptop via a USB AVR Programmer

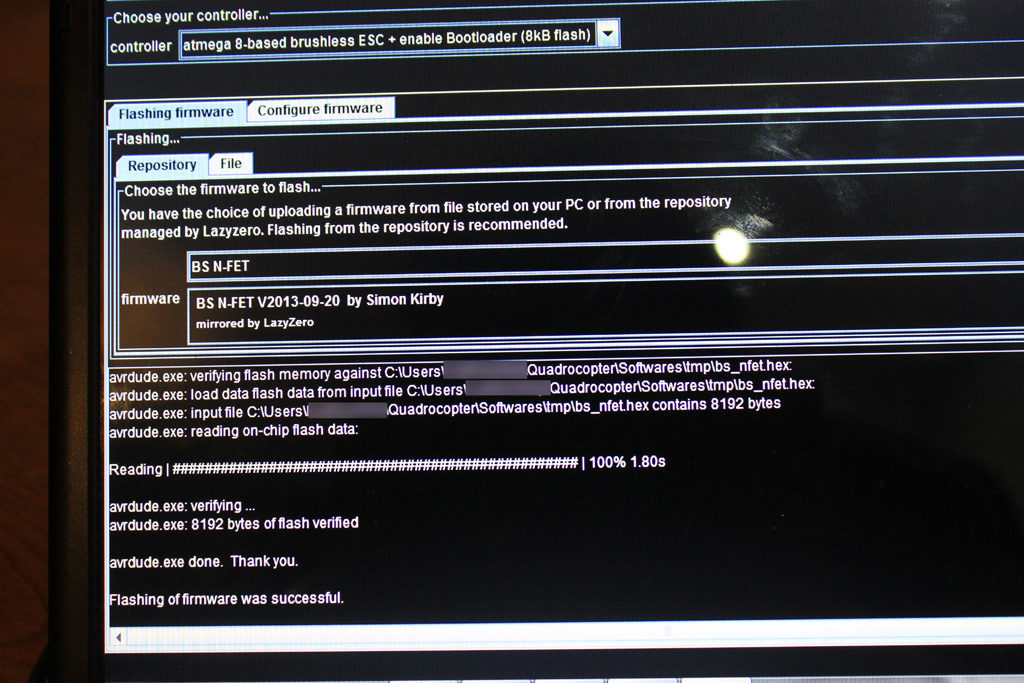

ESC firmware upgrade for better performance

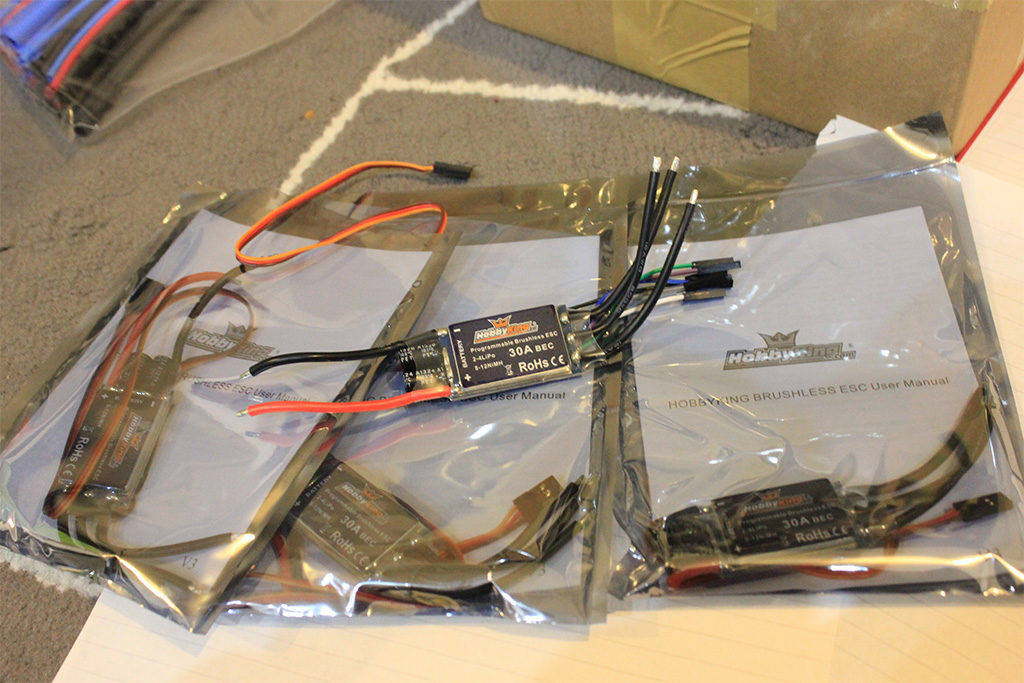

3 more to go

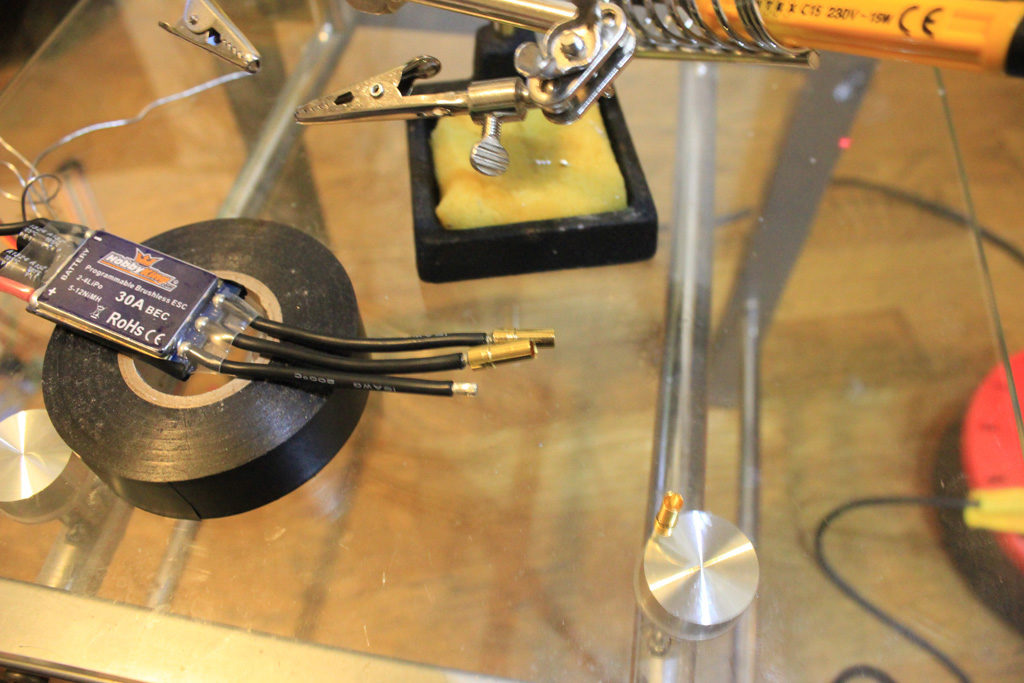

Soldering the ESC's motor side connectors

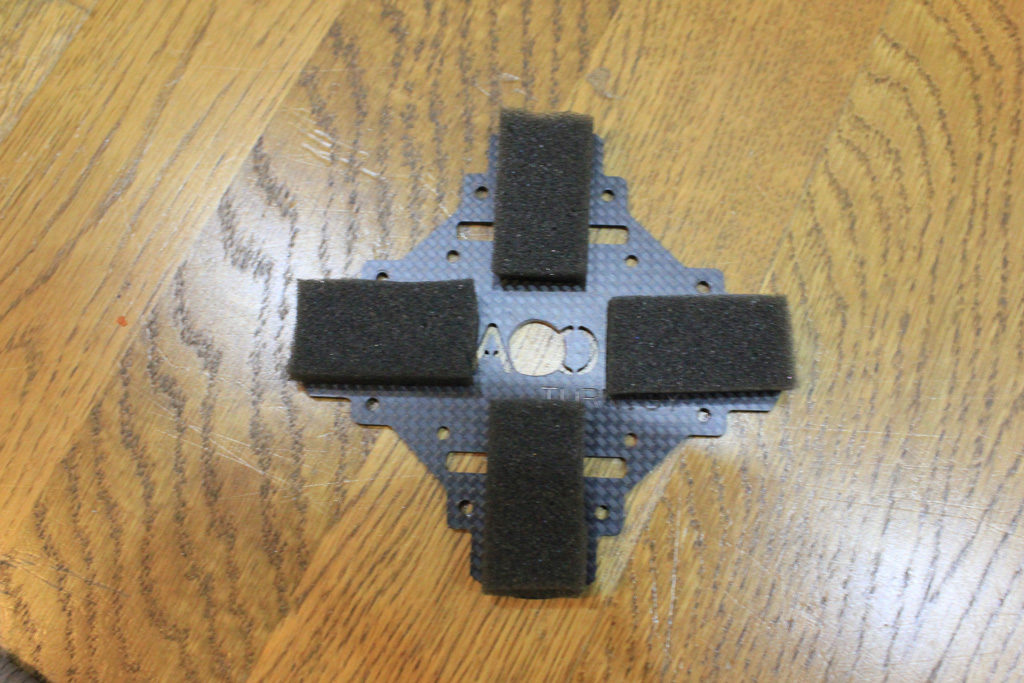

Preparation for the 4 ESCs

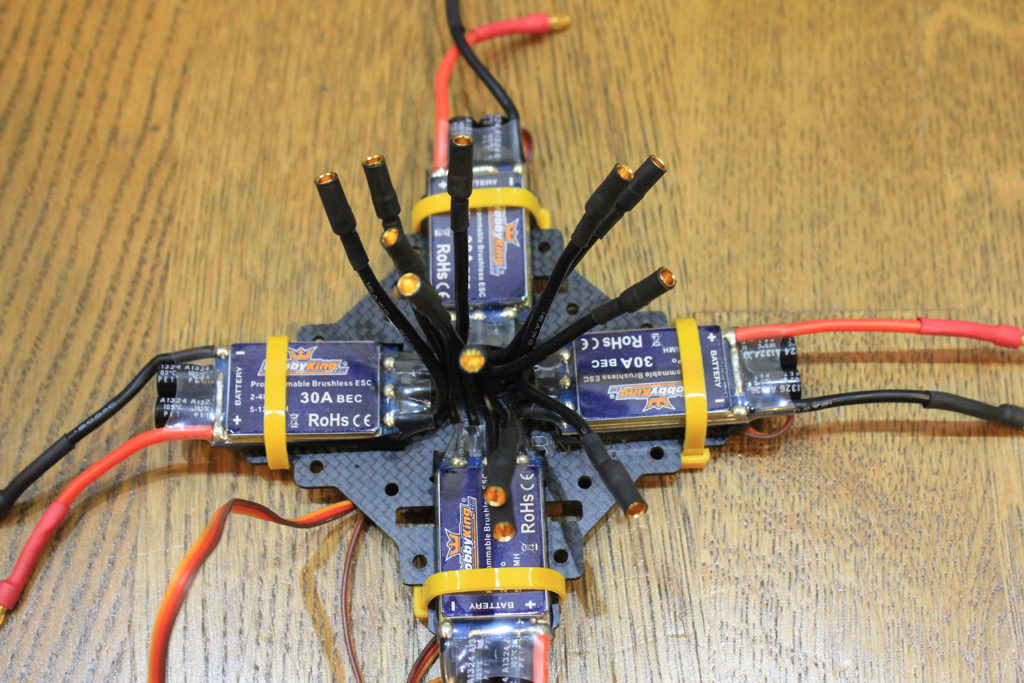

The ESCs are at their position

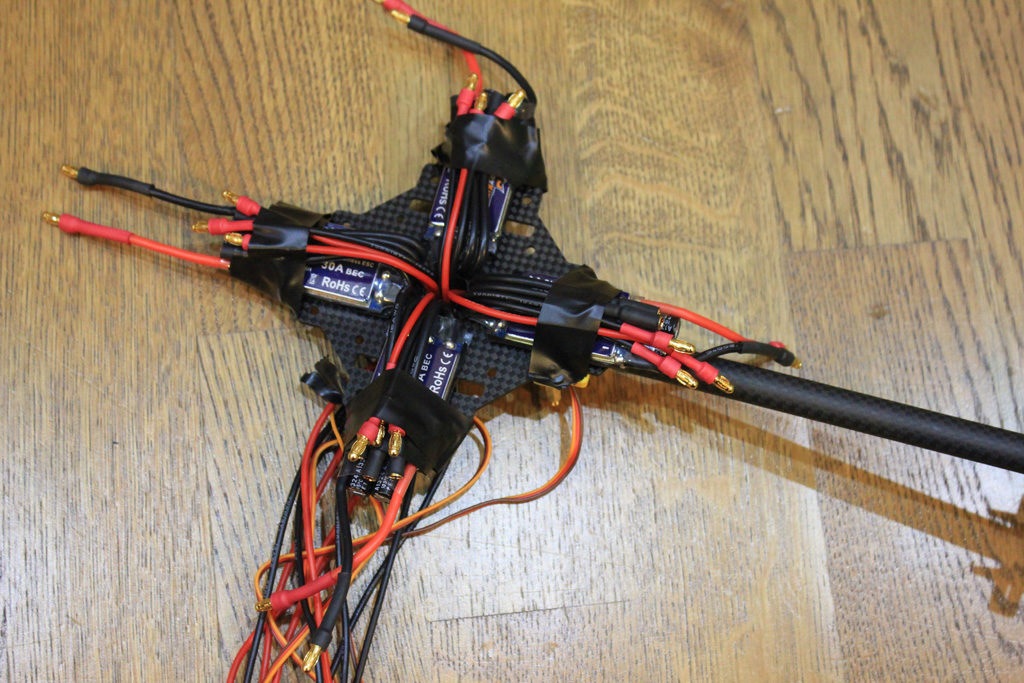

Adding extension wires for the motors

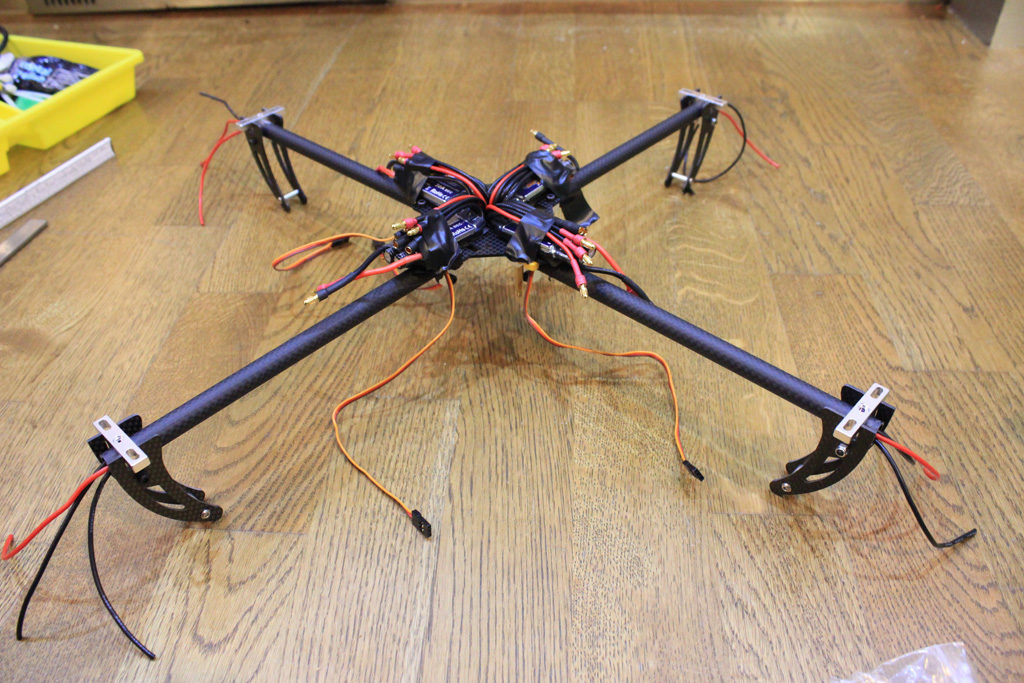

Complete frame with the wiring

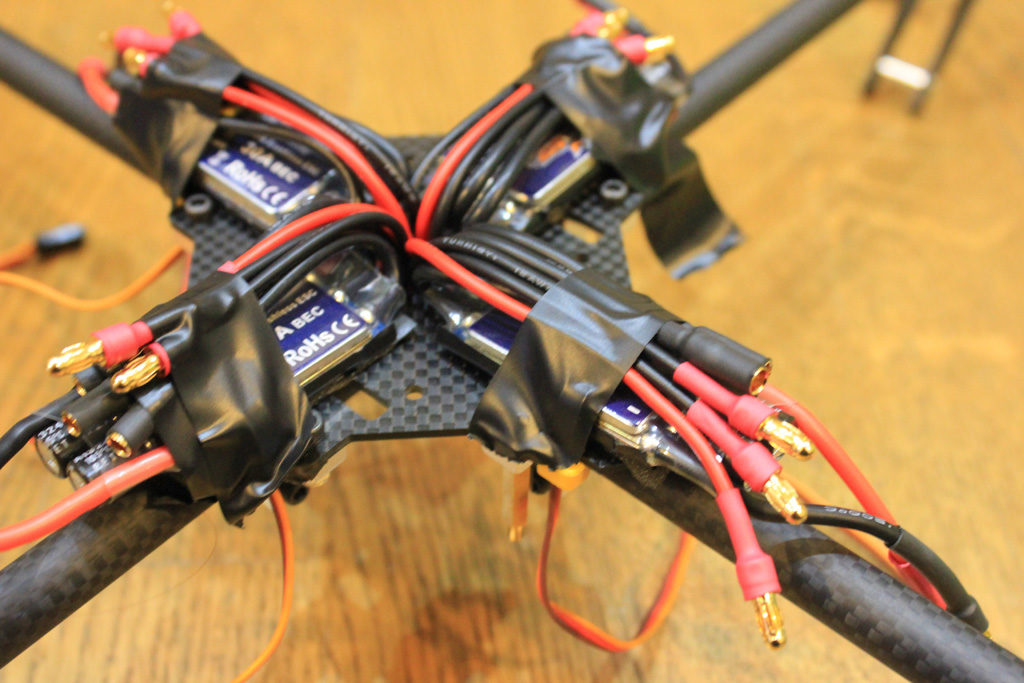

Ready to connect up the ESCs

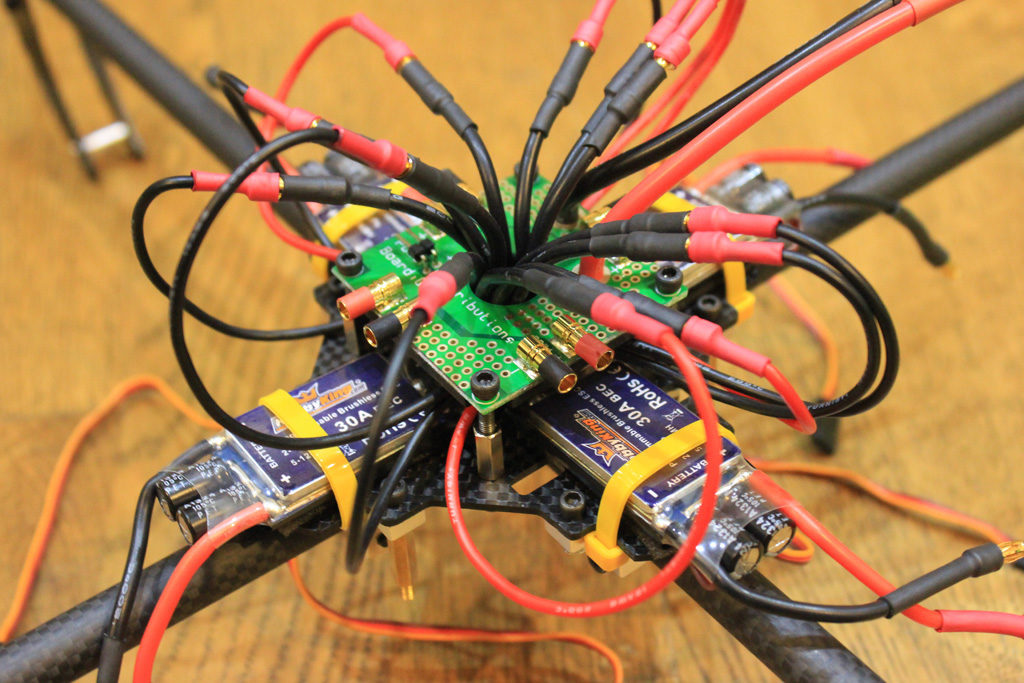

The installed power distributor

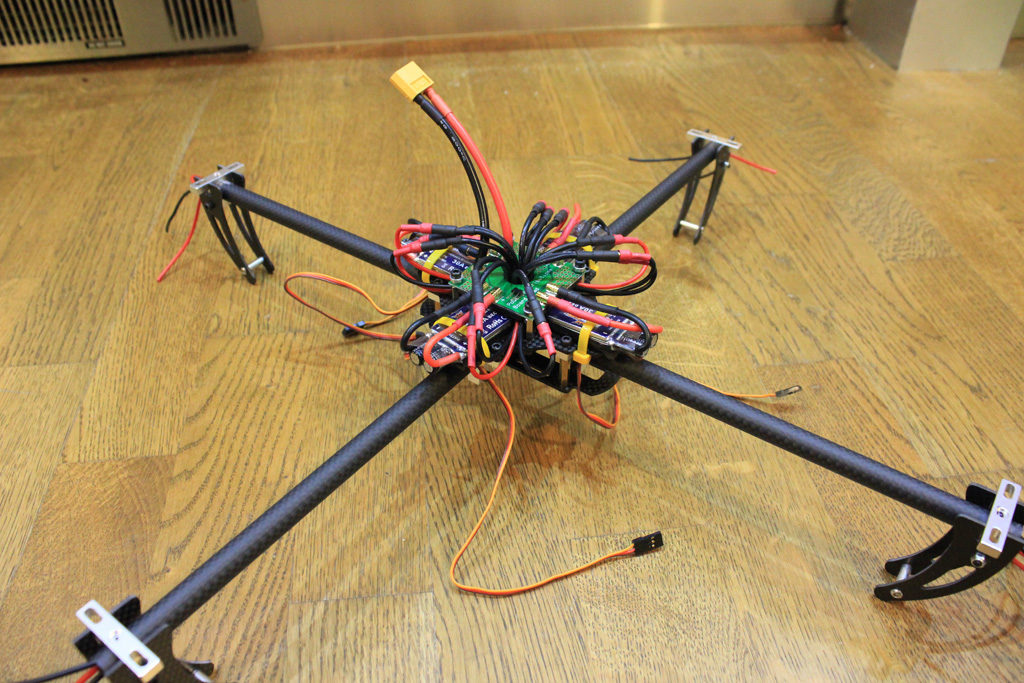

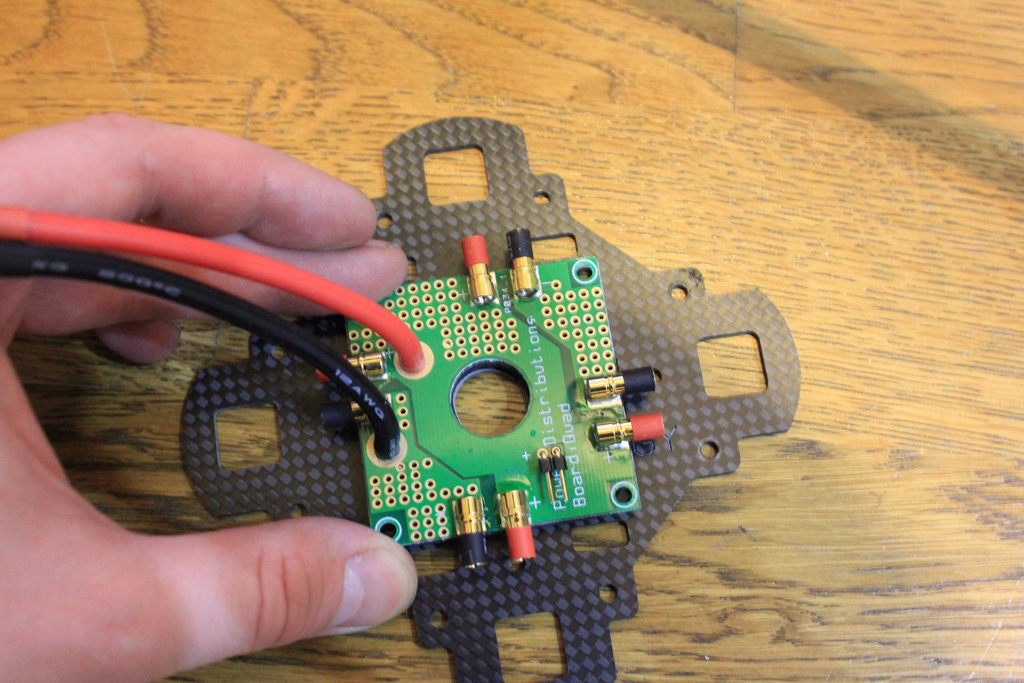

Battery connector added to the power distribution board

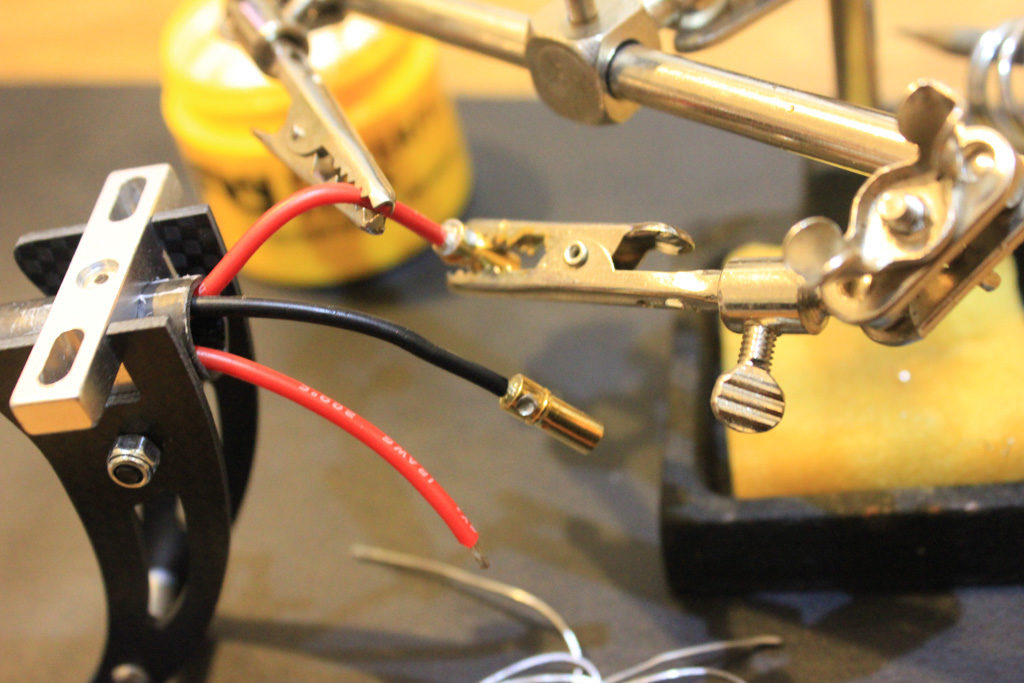

Soldering the connectors for the motors

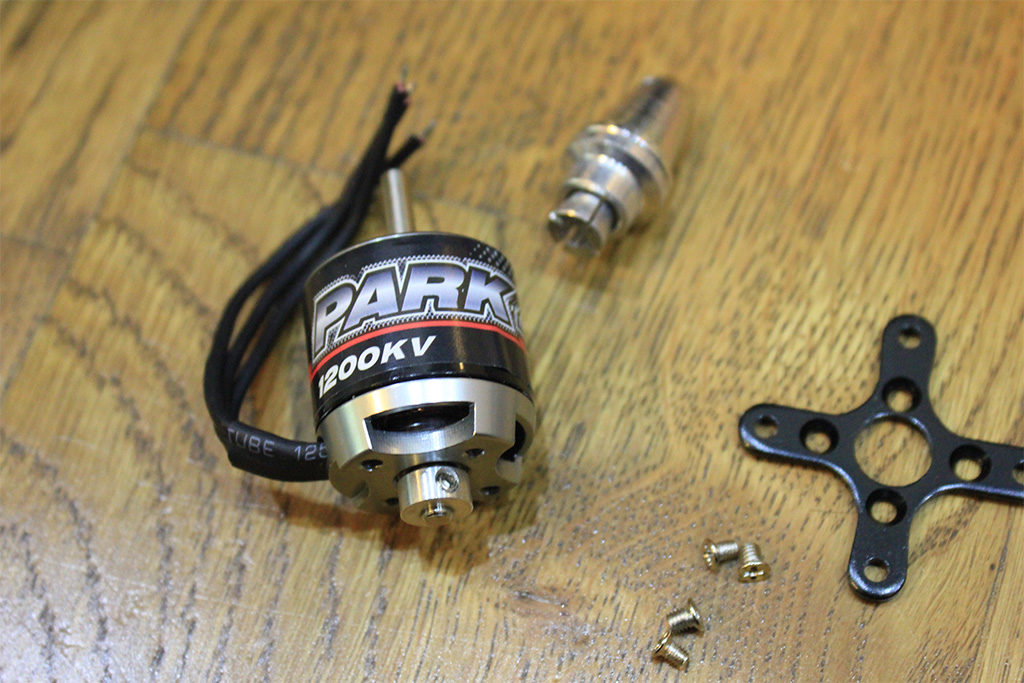

Brushless outrunner motor

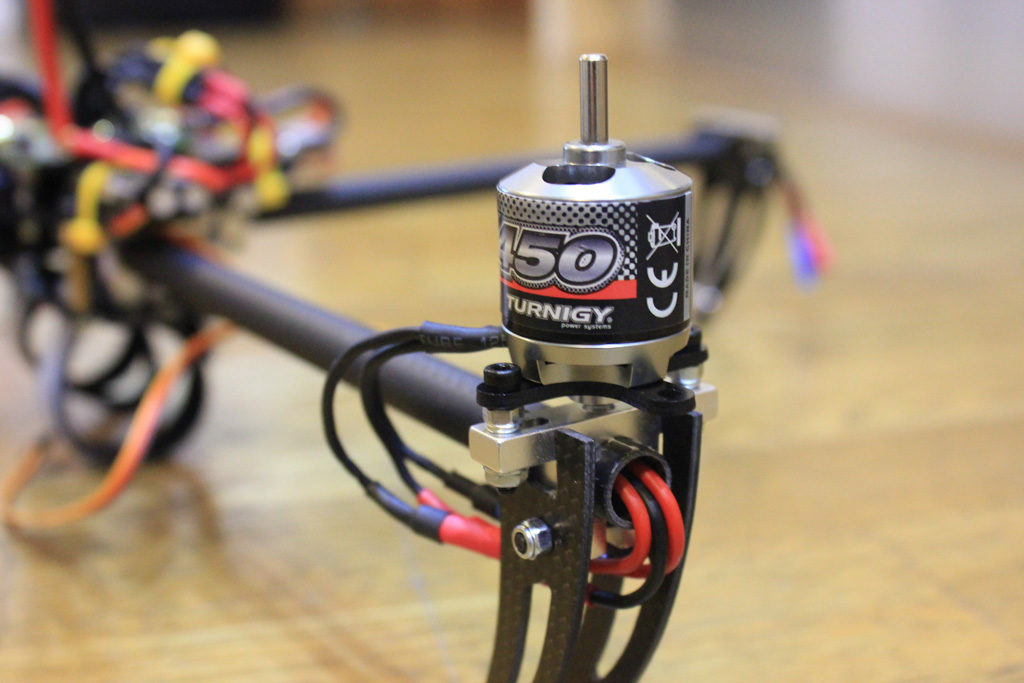

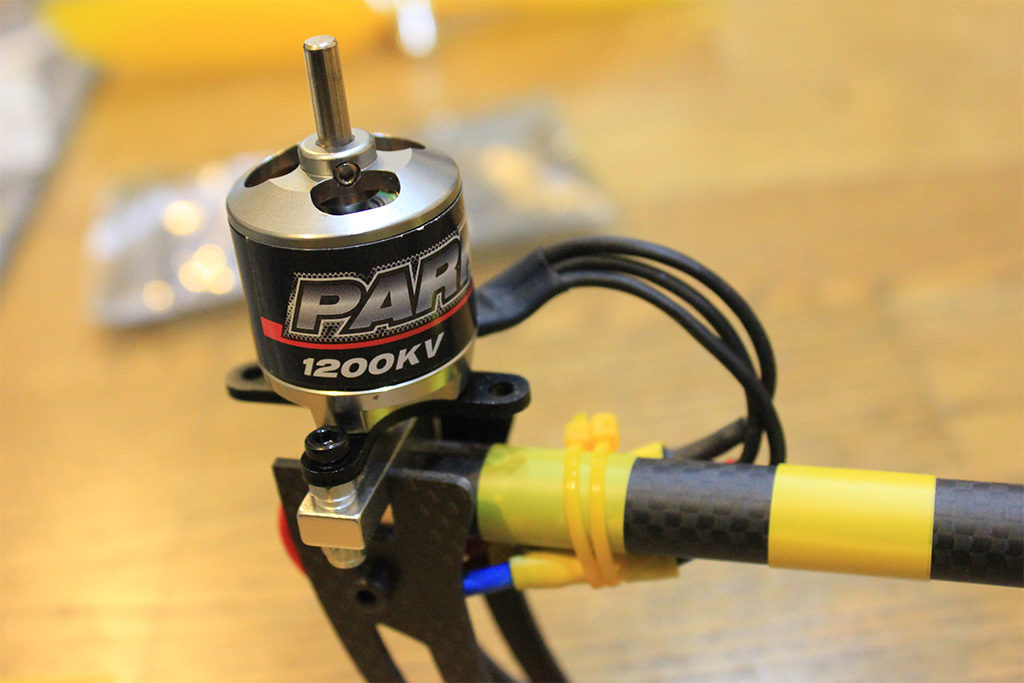

1 of the 4 ones

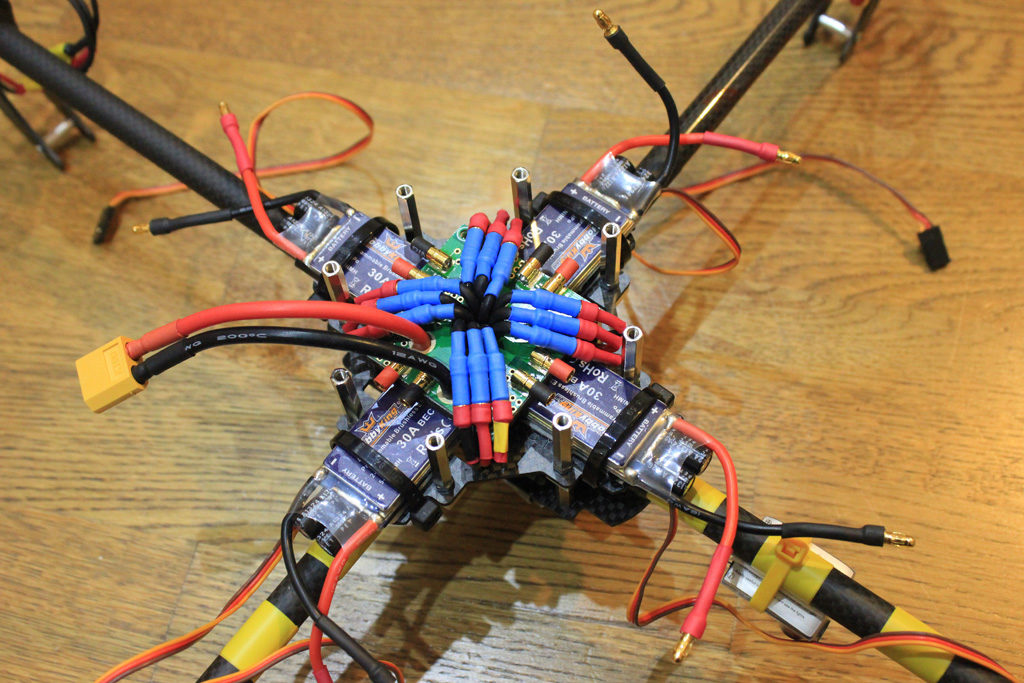

Organising the power cables

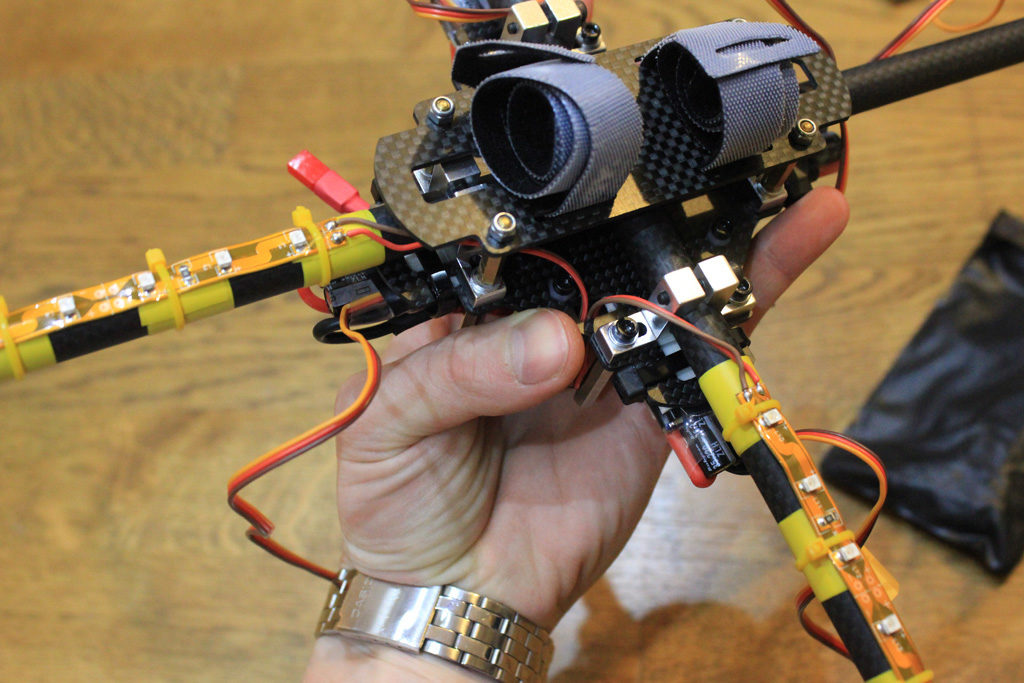

LEDs and yellow straps for orientation purposes

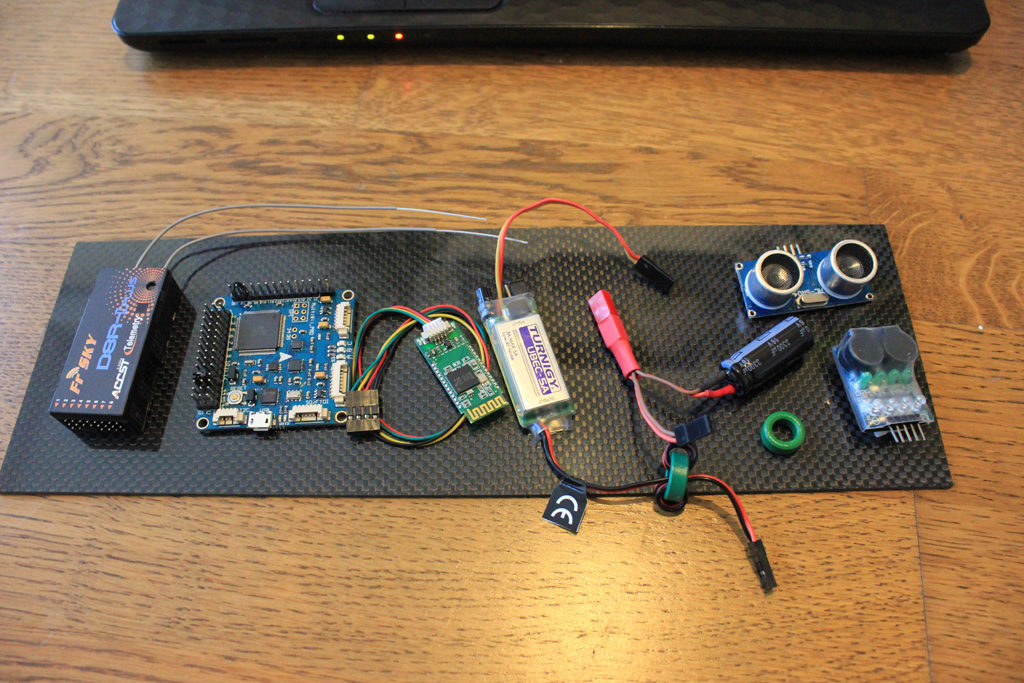

Some of the main parts which are used later

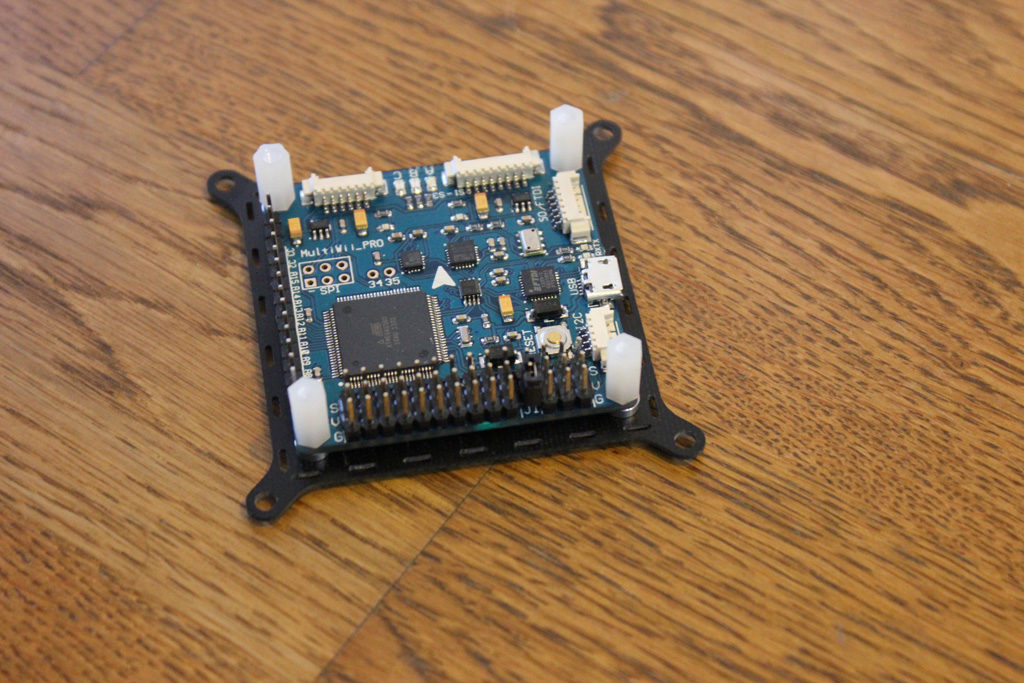

Flight controller with Gyrometer, Accelerometer, Barometer and compass

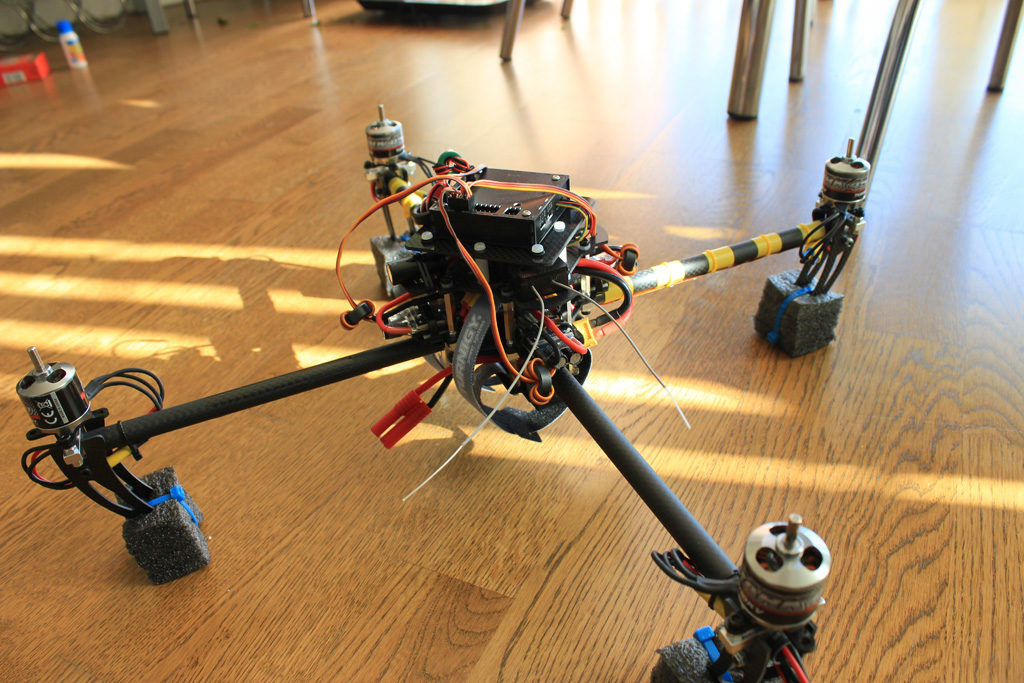

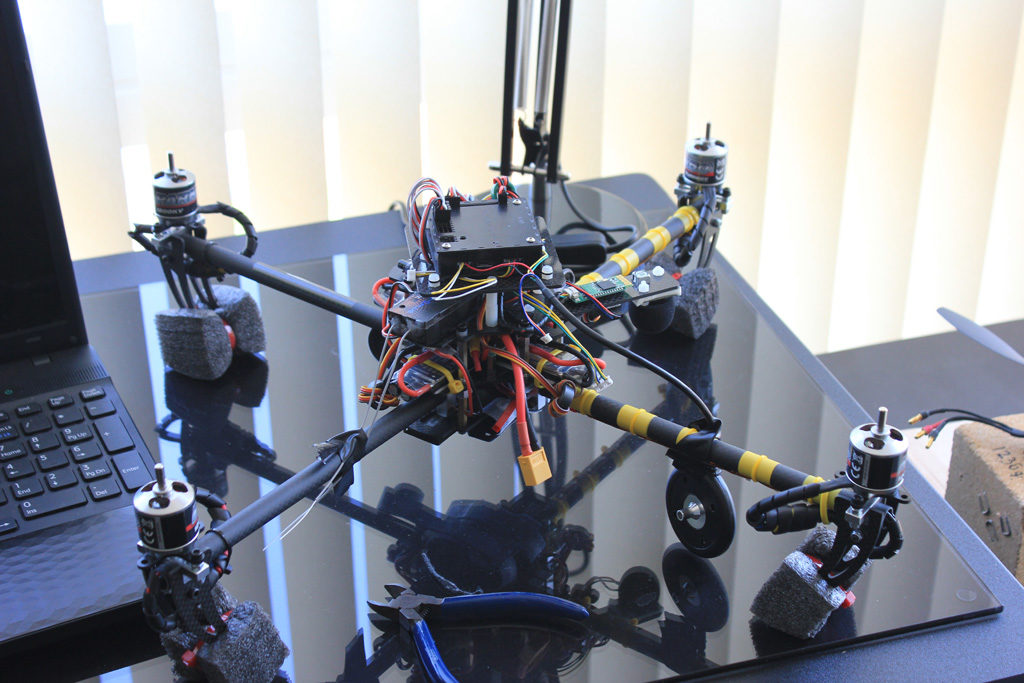

First assembled test version

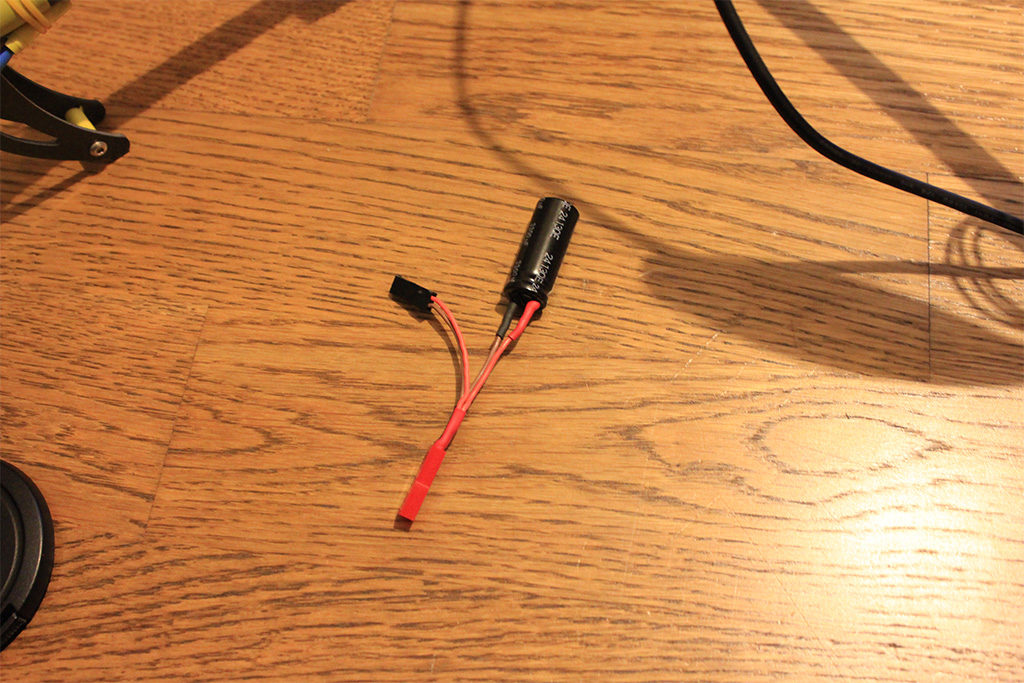

Bypass capacitor to protect circuit

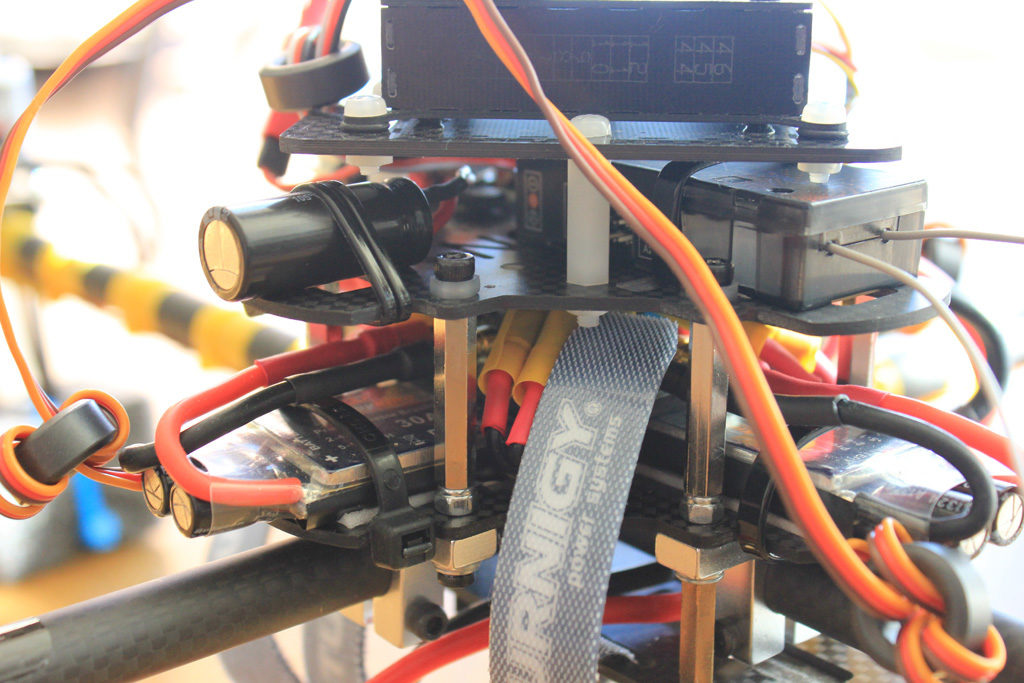

Bypass capacitor to protect circuit installed

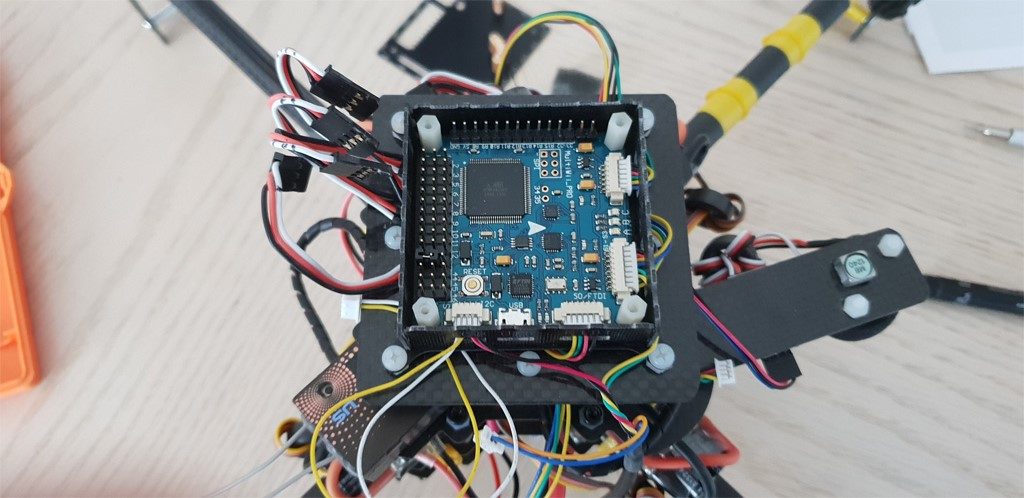

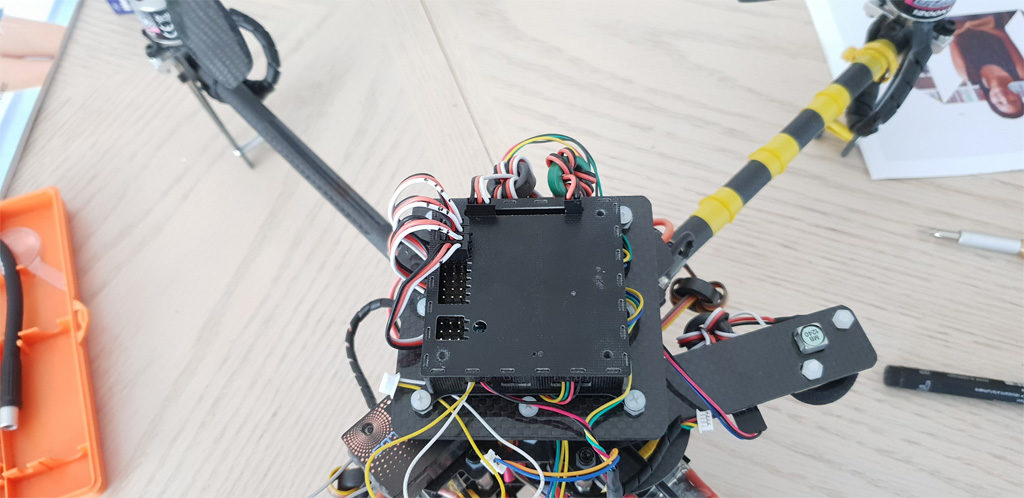

The mess under the flight controller

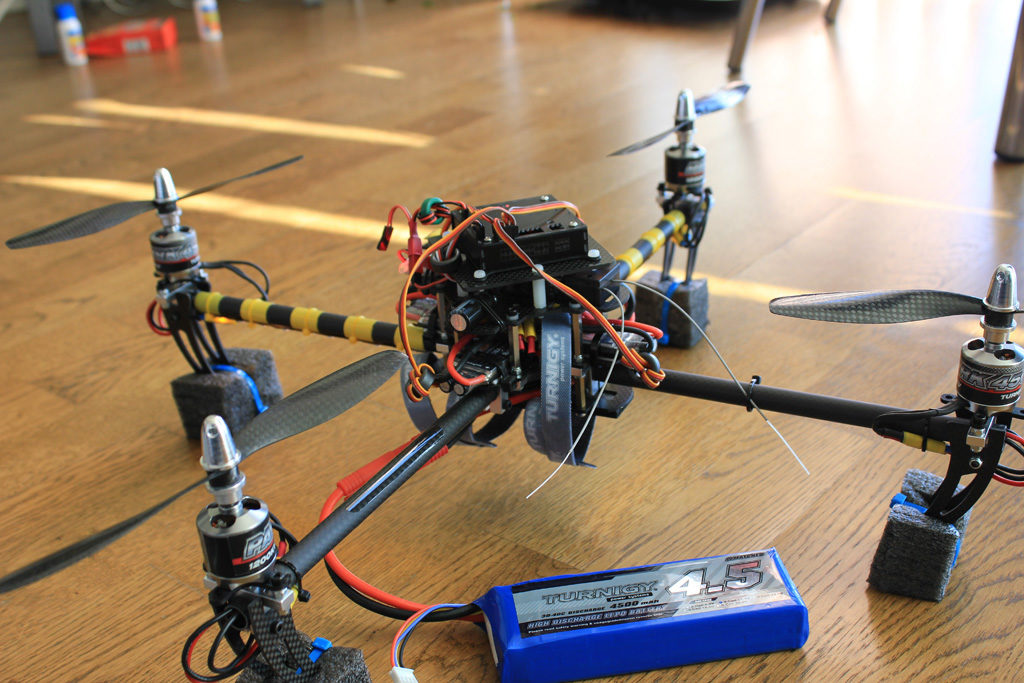

Ready for test. Balanced carbon fiber propellers and a massive 4500mah high discharge LiPo battery

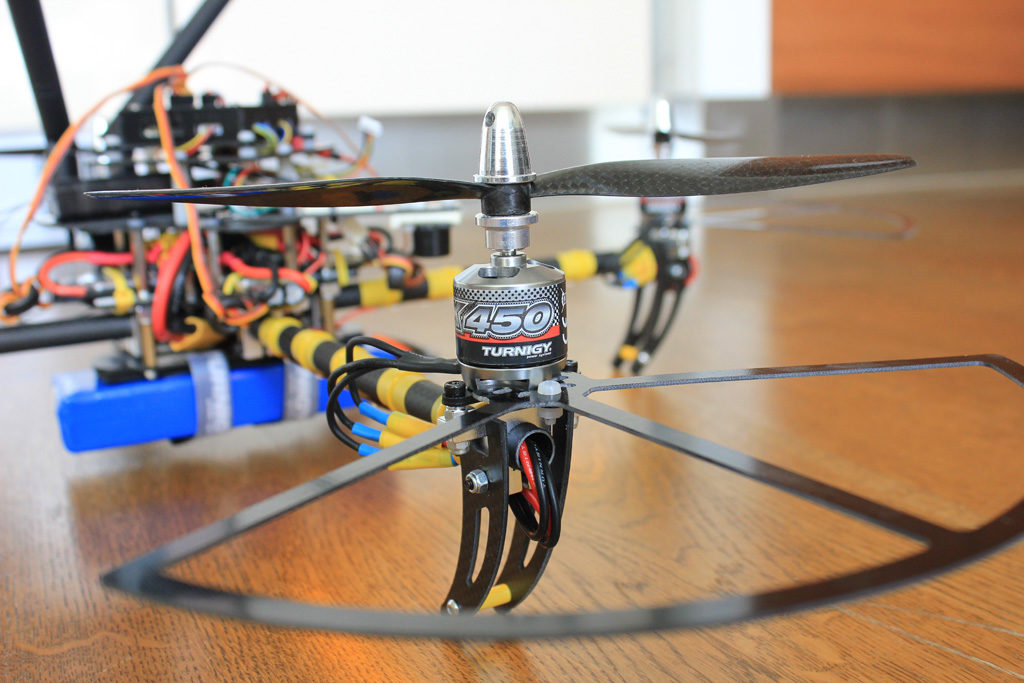

New carbon fiber propeller guards

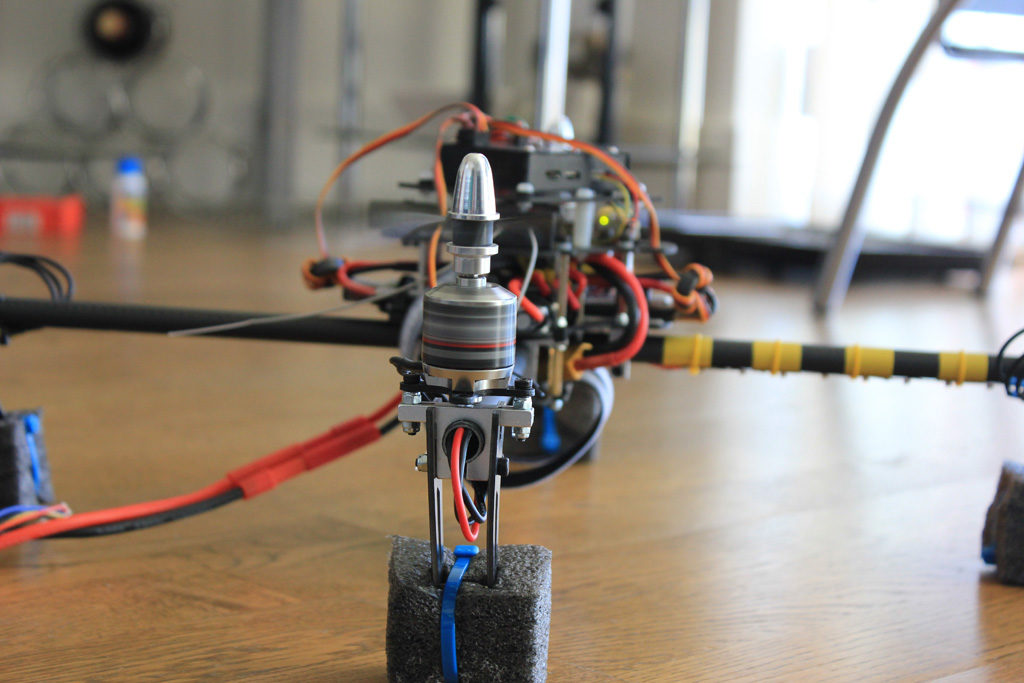

Propeller test

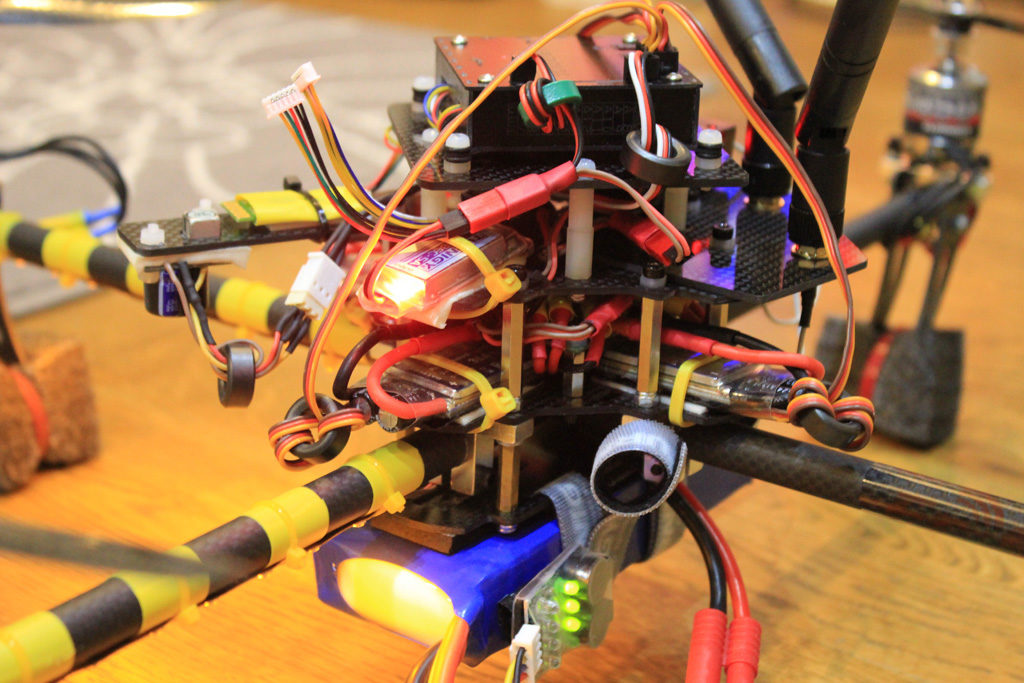

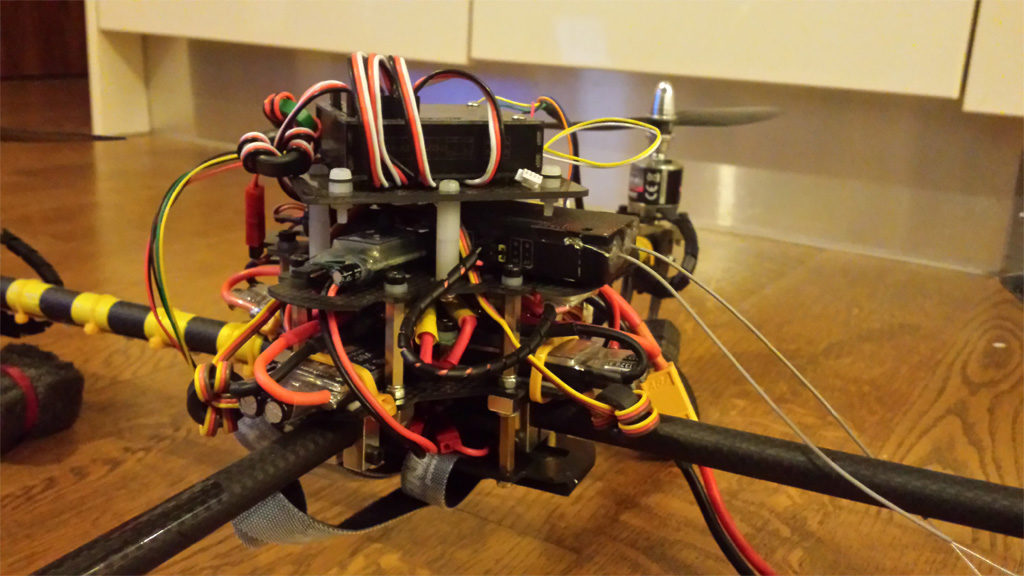

Working HW

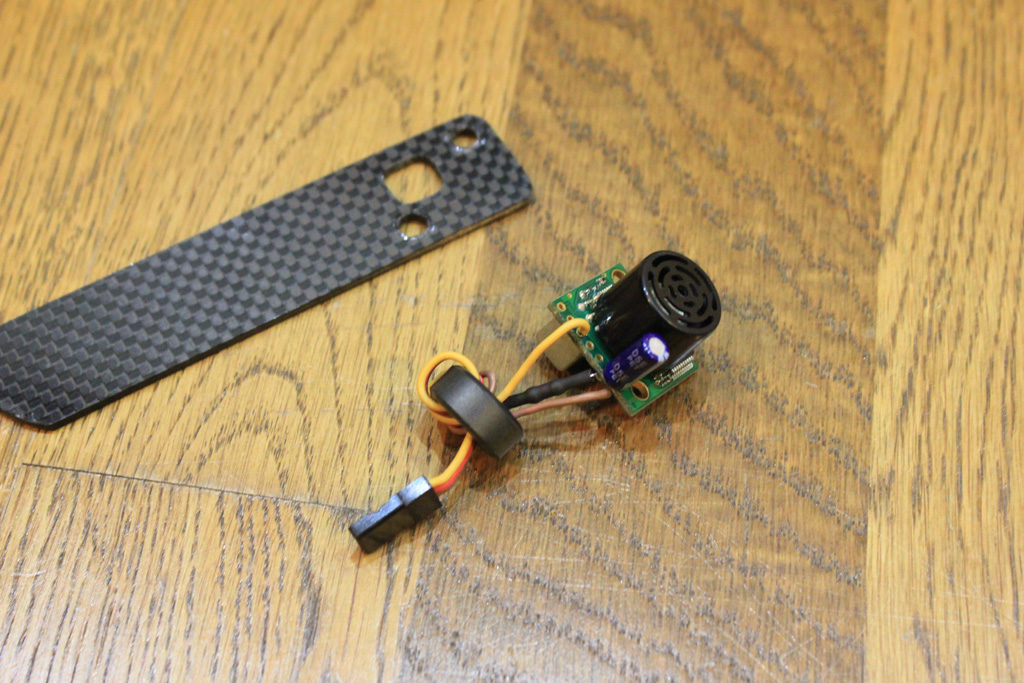

Sonar is to be able to hover low when the barometer is confused about the air pressure

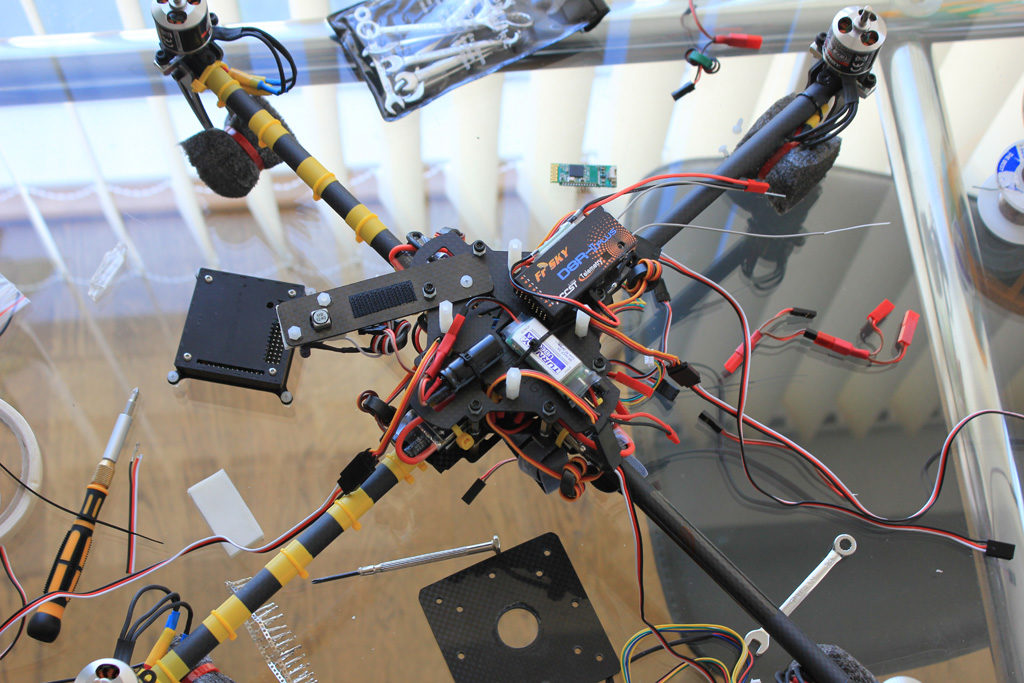

Installing the sonar

:-)

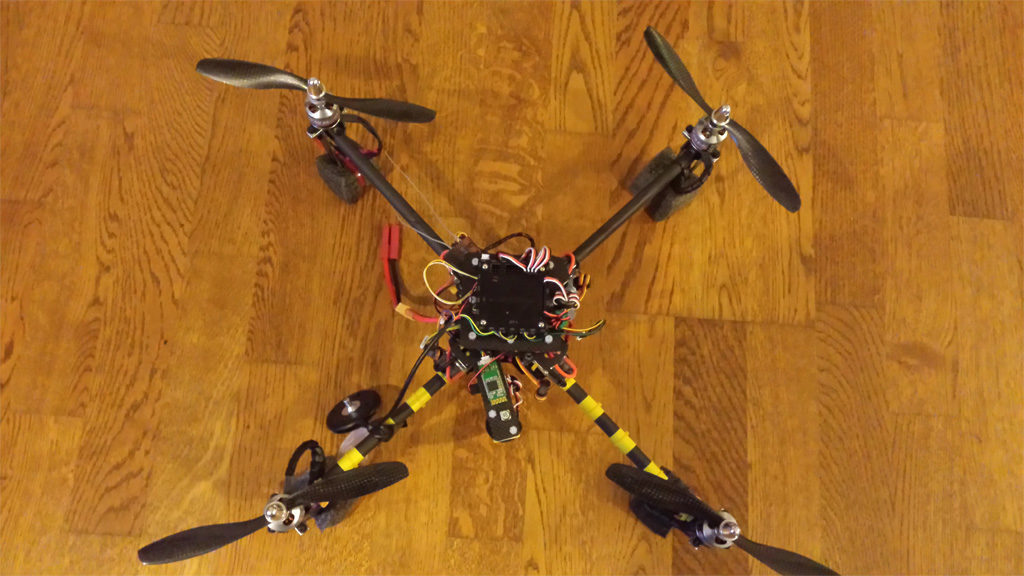

Still not ready, GPS and antenna problems

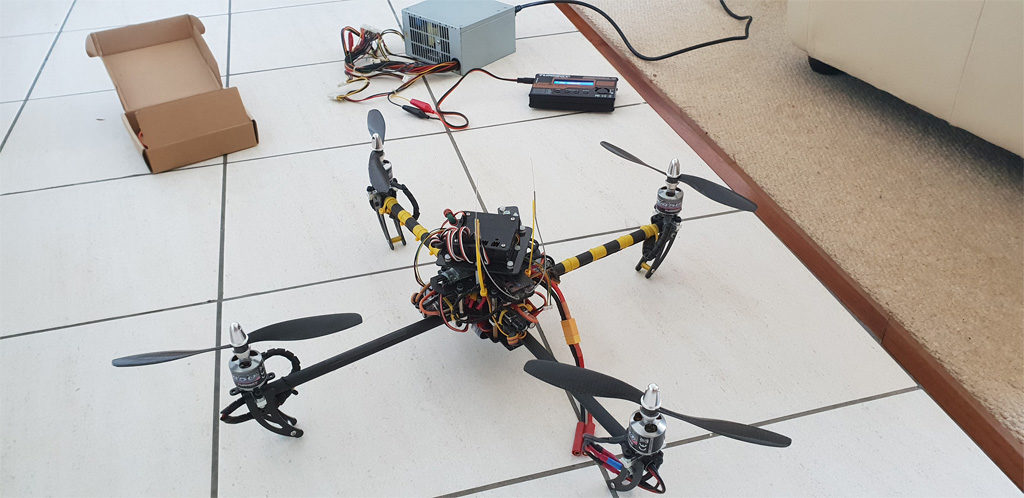

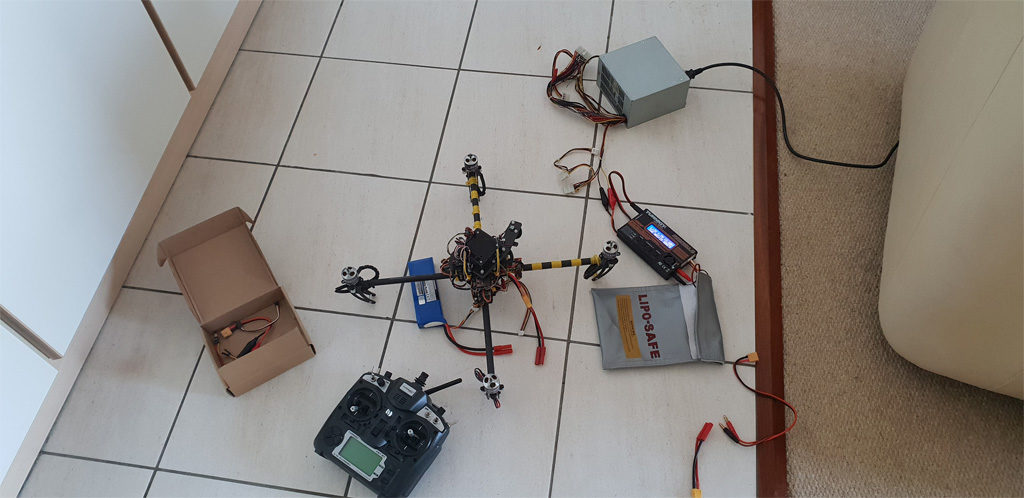

Charging up
